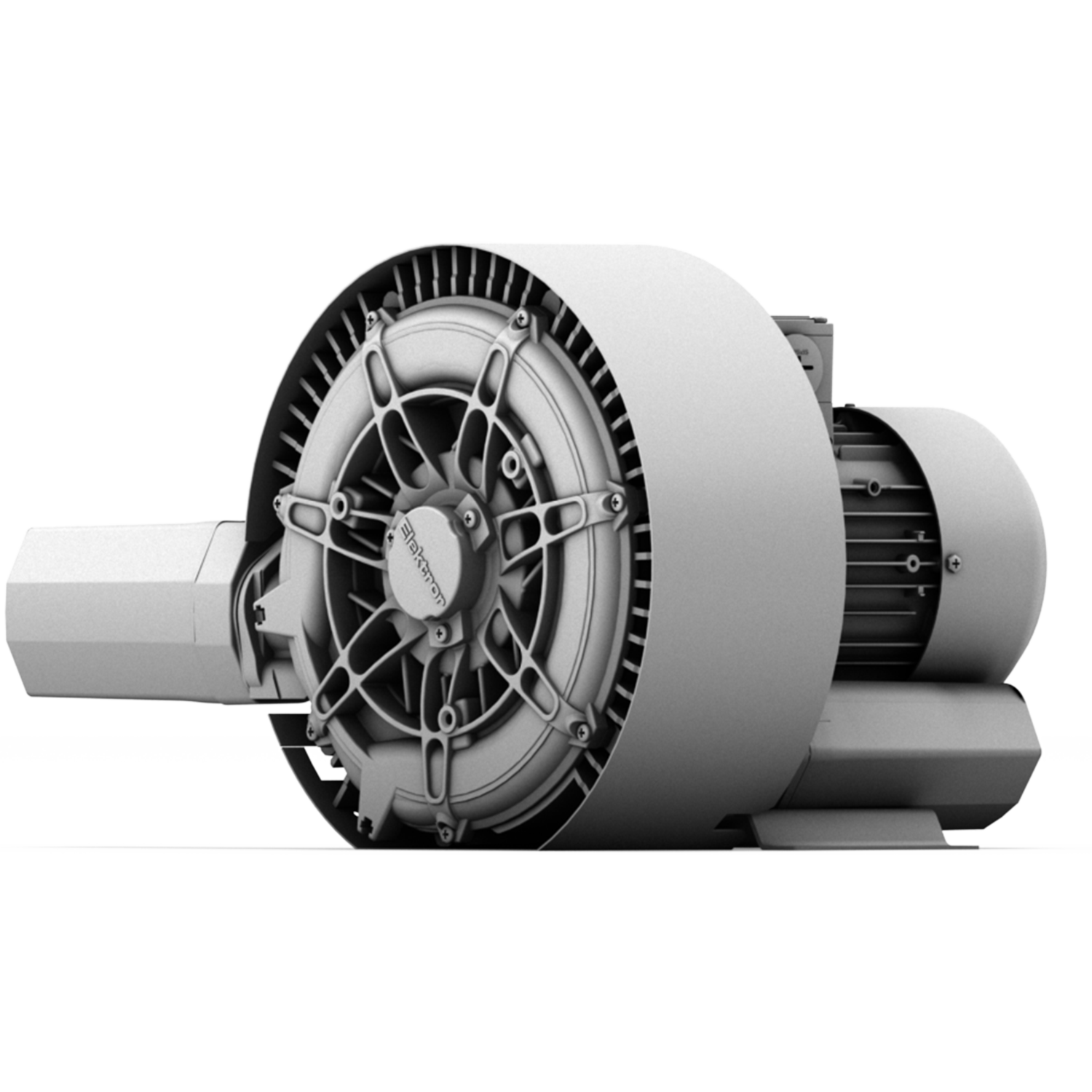

Double stage side channel blowers
2SD 220
Up to 21.83 m³/min and 750 mbar. Housing and open impellers made of cast aluminium. Direct motor, integrated temperature guard, integrated silencer, compact construction, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
2SD 220 - 50/0,55
-
1,47
24000
1,47
21000
207-253 / 360-440
50
2,70/1,57
0,55
14
55
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Weight
Sound pressure level
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
kg
dB (A)
2SD 220 - 50/0,55
-
1,72
25000
1,72
25000
220-250 / 415-480
60
4,0/2,3
0,94
14
61
