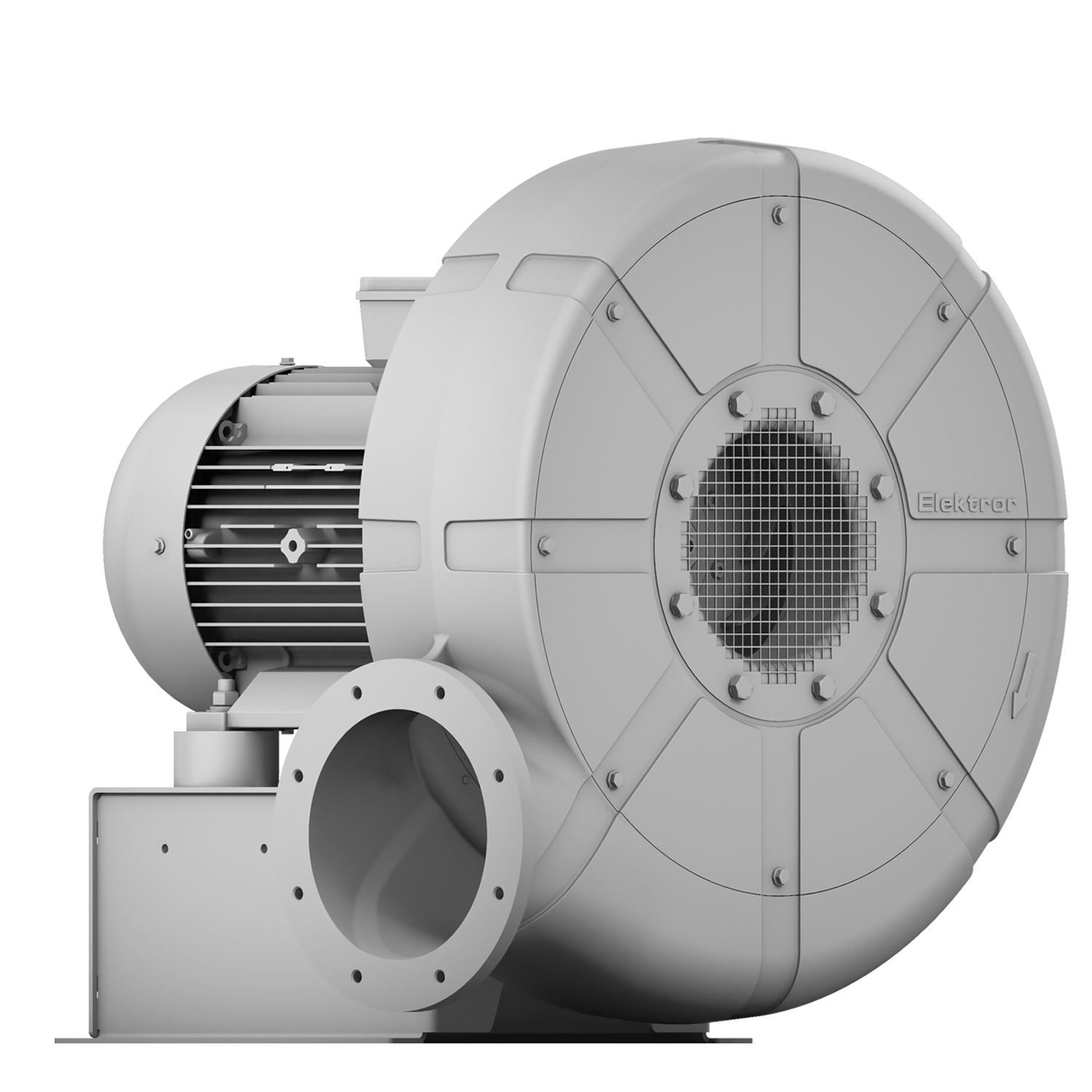

Aluminum High Pressure Blower
A-HP 450/35
Flow rate up to 90 m³/min and 13.650 Pa. Minimal wear, direct drive with offset Frequency Converter (FU) or mounted (FUK). Housing consists of aluminum cast. Impeller and housing are optimised and perfectly matched. Maximum performance from such a compact design.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
A-HP 450/35-110/15,0
-
38,7
17490
400
110
28
15
6515
102
A-HP 450/35-110/18,5
-
55,1
17540
400
110
32,5
18,5
6505
113
A-HP 450/35-110/22,0
-
76,9
17600
400
110
41
22
6510
119
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
A-HP 450/35-110/15,0
-
38,7
17490
400
110
28
15
6515
123
A-HP 450/35-110/18,5
-
55,1
17540
400
110
32,5
18,5
6505
134
A-HP 450/35-110/22,0
-
76,9
17600
400
110
41
22
6510
140
Technical drawings
