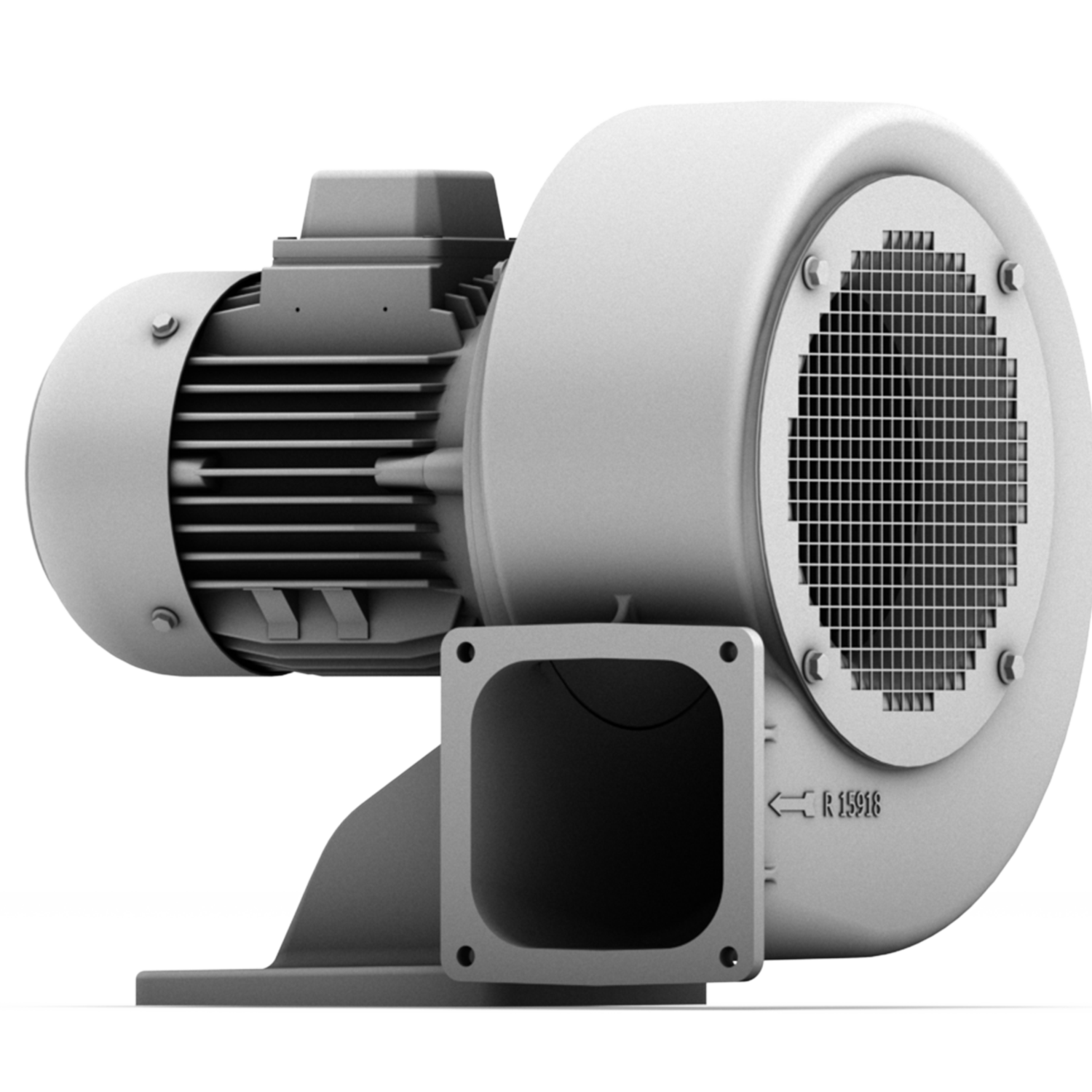

Radial Low Pressure Blowers
D 066, E 066
Up to 95 m³/min and 2,200 Pa. Housing made of cast aluminium, drum impellers bent forward and made of galvanized sheet steel, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
D 066
IE3
38,0
1200
230/400
50
5,40/3,10
1,5
2905
21,5
-
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
D 066
IE3
38,0
1300
230/400
60
6,40/3,70
1,8
3505
21,5
-
D 066
NEMA Premium
38,0
1300
277/480
60
5,40/3,10
1,8
3505
21,5
-
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
E 066
-
36,0
1200
230
50
9,5
1,5
2880
18
30/450
ATEX
ATEX models are available for this series on request. If you are interested, please fill in and send us our ATEX self-assessment form.
