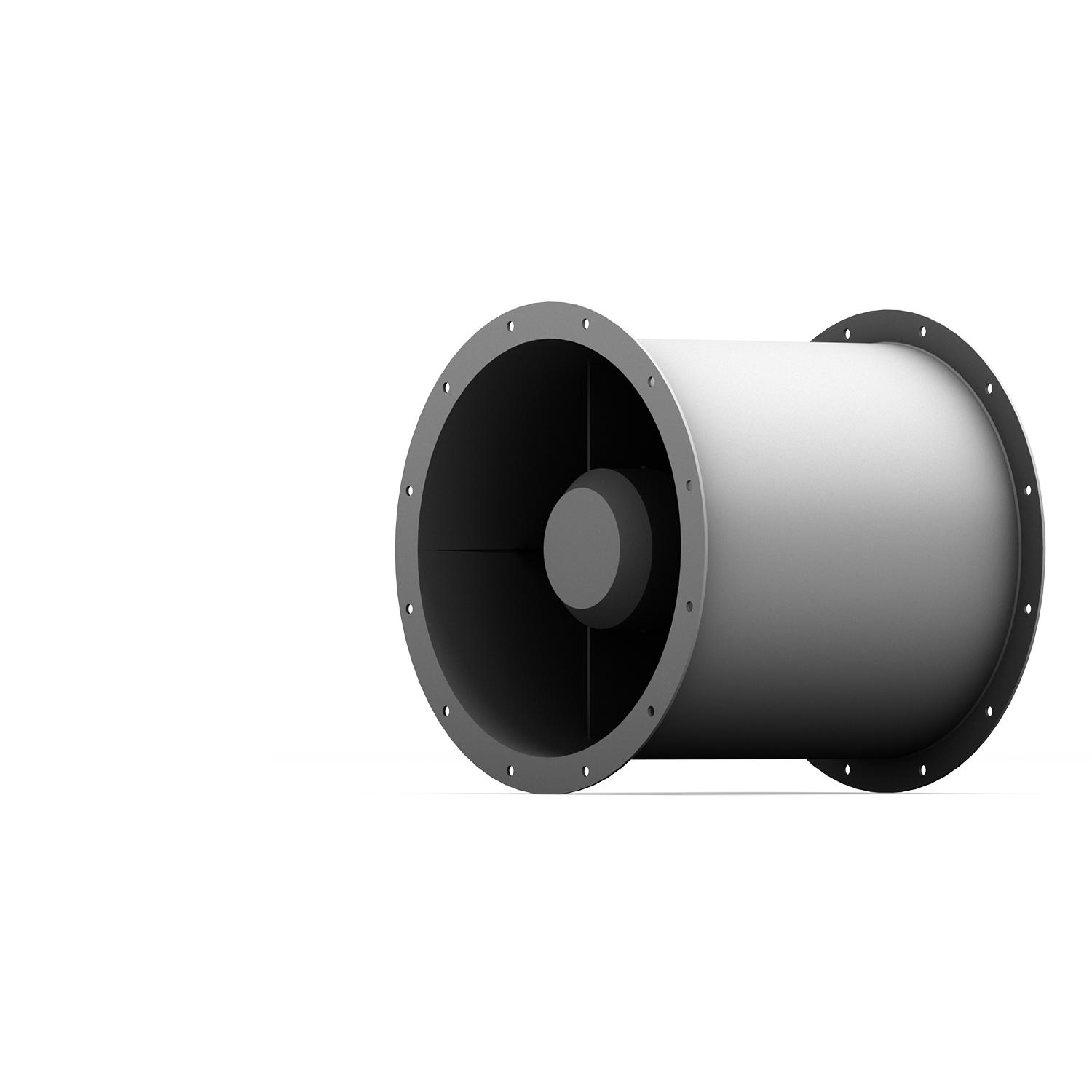

Axial Medium Pressure Fans
MAF
Up to 200,000 m³/h (3,300 m³/min) and 2,000 Pa. With direct or belt drive - frequency converter operation also possible. Housing made of steel or stainless steel, impellers made of plastic or aluminium. Fans of this type series are always configured specific to the project.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Performance
Weight
-
m³/h
Pa
V
Hz
kW
kg
MAF
IE1/IE2/IE3/NEMA
3400
2000
230/400, 277/480, 400, 480
50/60
0,25
1,5
Downloads
|
Instruction manual MAF D3/D5 (de) |
Instruction manual | 5 MB | Download | |
|
Instruction manual MAF-B (de) |
Instruction manual | 6 MB | Download | |
|
Instruction manual MAF-B (pl) |
Instruction manual | 7 MB | Download | |
|
Instruction manual MAF D3/D5 (pl) |
Instruction manual | 5 MB | Download |
