Radial Medium Pressure Blowers
RD 14
Up to 142 m³/min and 10,600 Pa. Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
RD 14
IE3
11,2
1110
230/400
50
1,17/0,68
0,25
2730
11,0
-
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Capacitor
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
µF/V
RD 14
IE3
11,5
1250
230/400
60
1,17/0,67
0,22
3435
11,0
-
RD 14
NEMA Premium
11,5
1250
277/480
60
0,97/0,56
0,22
3435
11,0
-
ATEX
ATEX models are available for this series on request. If you are interested, please fill in and send us our ATEX self-assessment form.

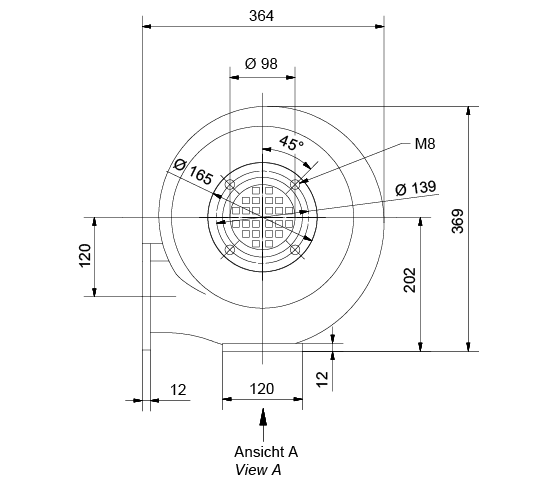

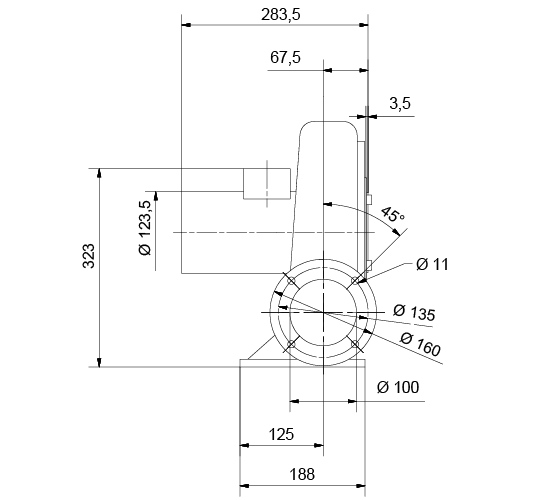

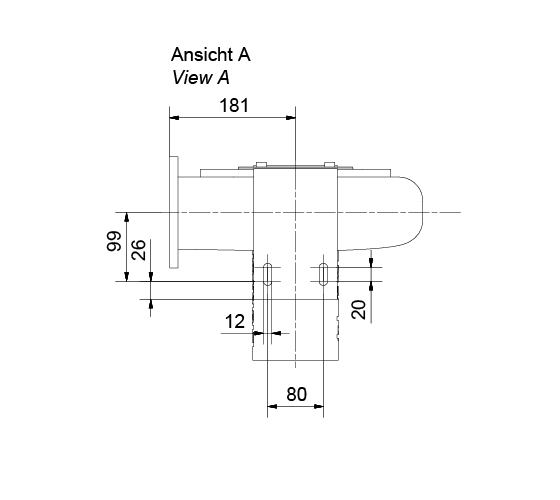

Technical drawings
Downloads
|
Catalogue RD |
Catalogue | 5 MB | Download | |
|
Instruction manual RD (fr, it, nl, da) |
Instruction manual | 7 MB | Download | |
|
Instruction manual RD (es, pt, gr, pl) |
Instruction manual | 7 MB | Download | |
|
Instruction manual RD (cz) |
Instruction manual | 3 MB | Download | |
|
Instruction manual RD (no, se, fi) |
Instruction manual | 6 MB | Download | |
|
Instruction manual RD (ru) |
Instruction manual | 4 MB | Download | |
|
Instruction manual RD (zh) |
Instruction manual | 4 MB | Download | |
|
Instruction manual RD RD (de, en) |
Instruction manual | 2 MB | Download |
