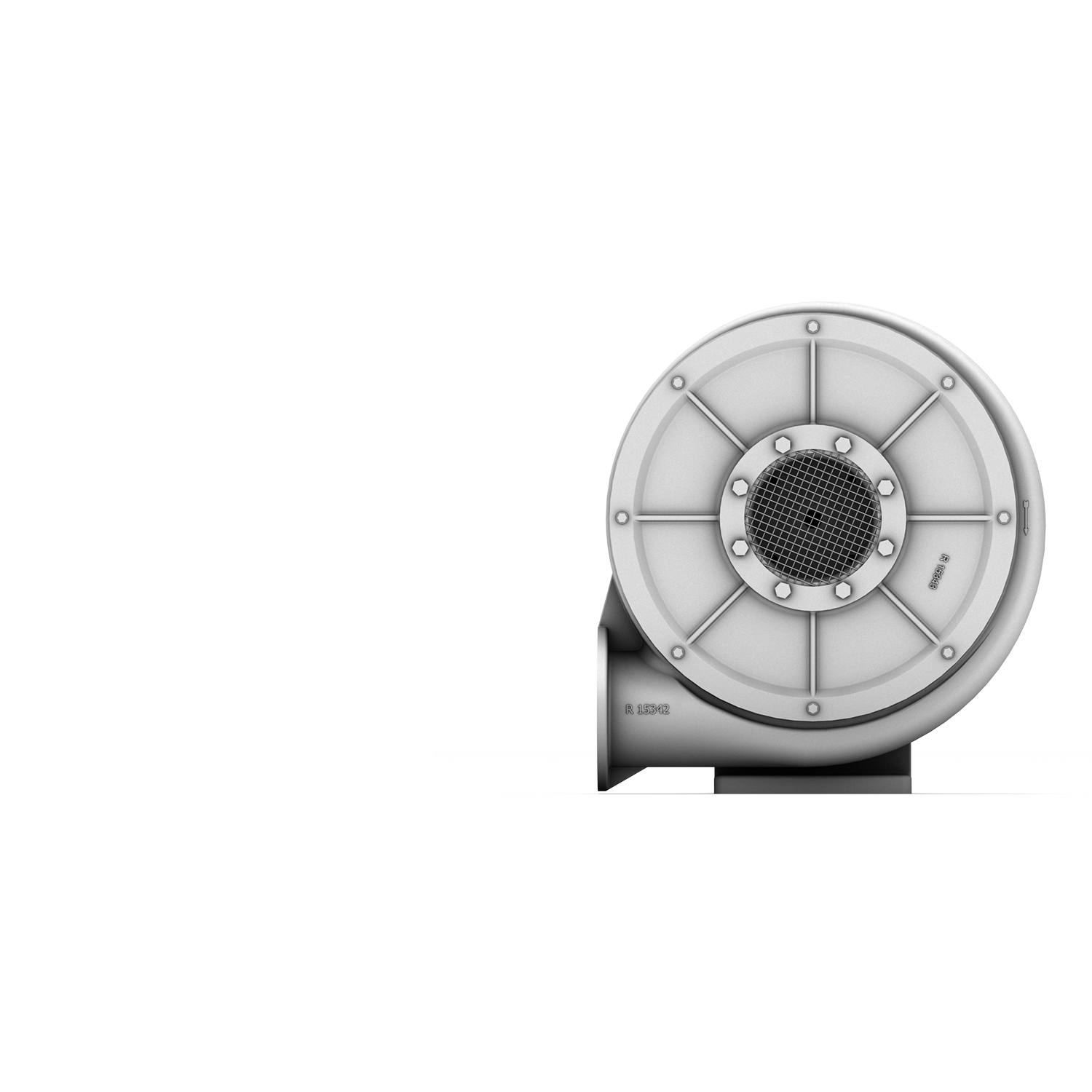

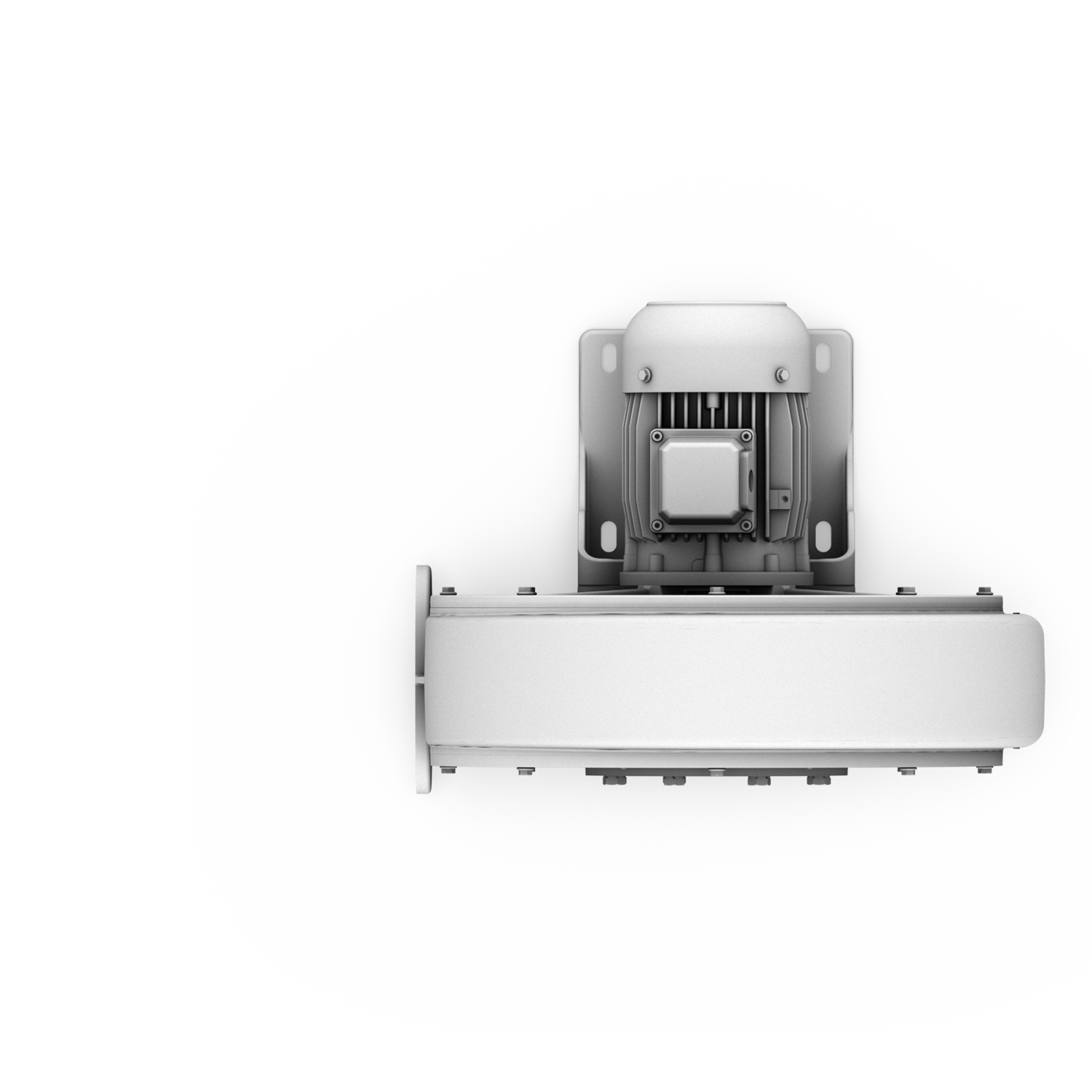

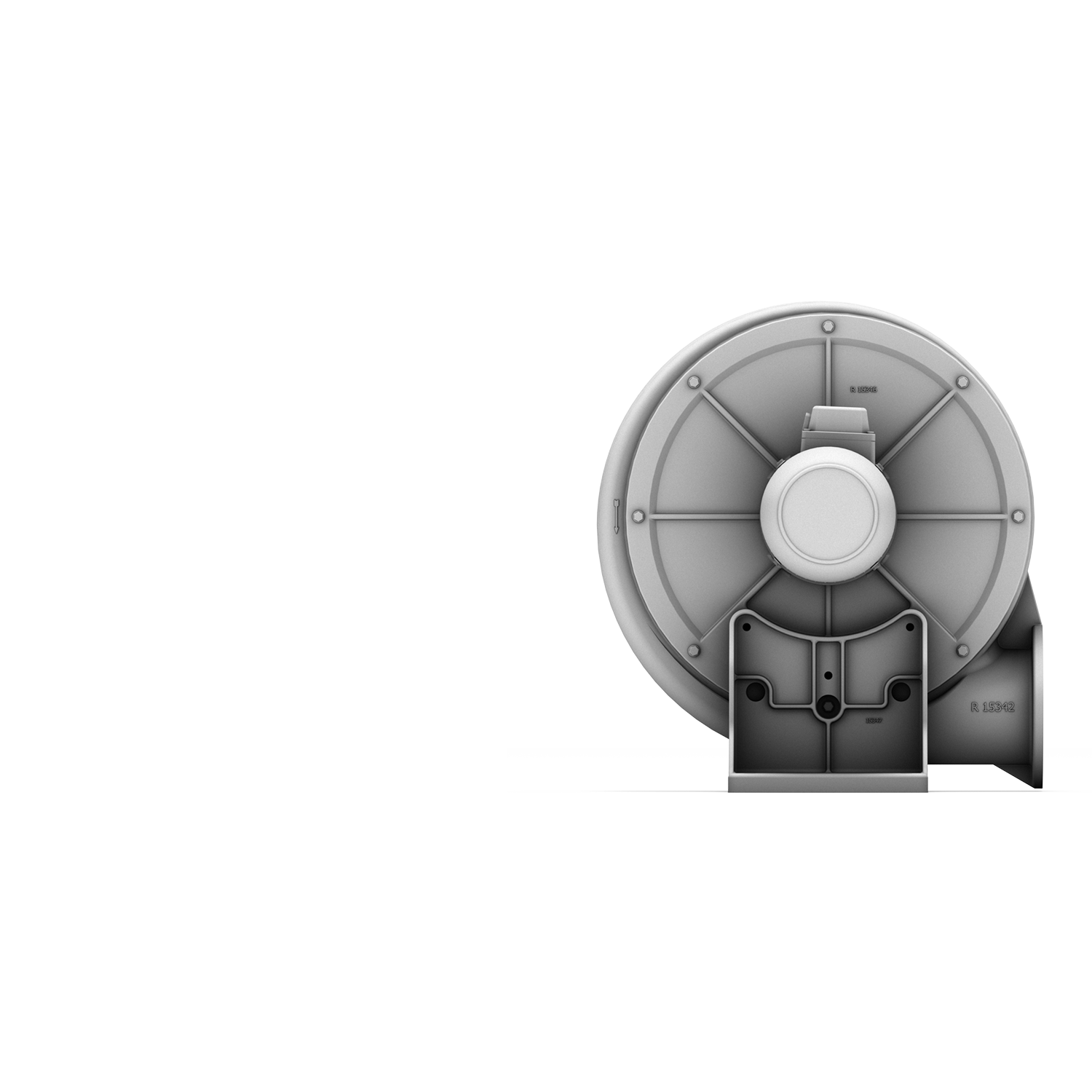

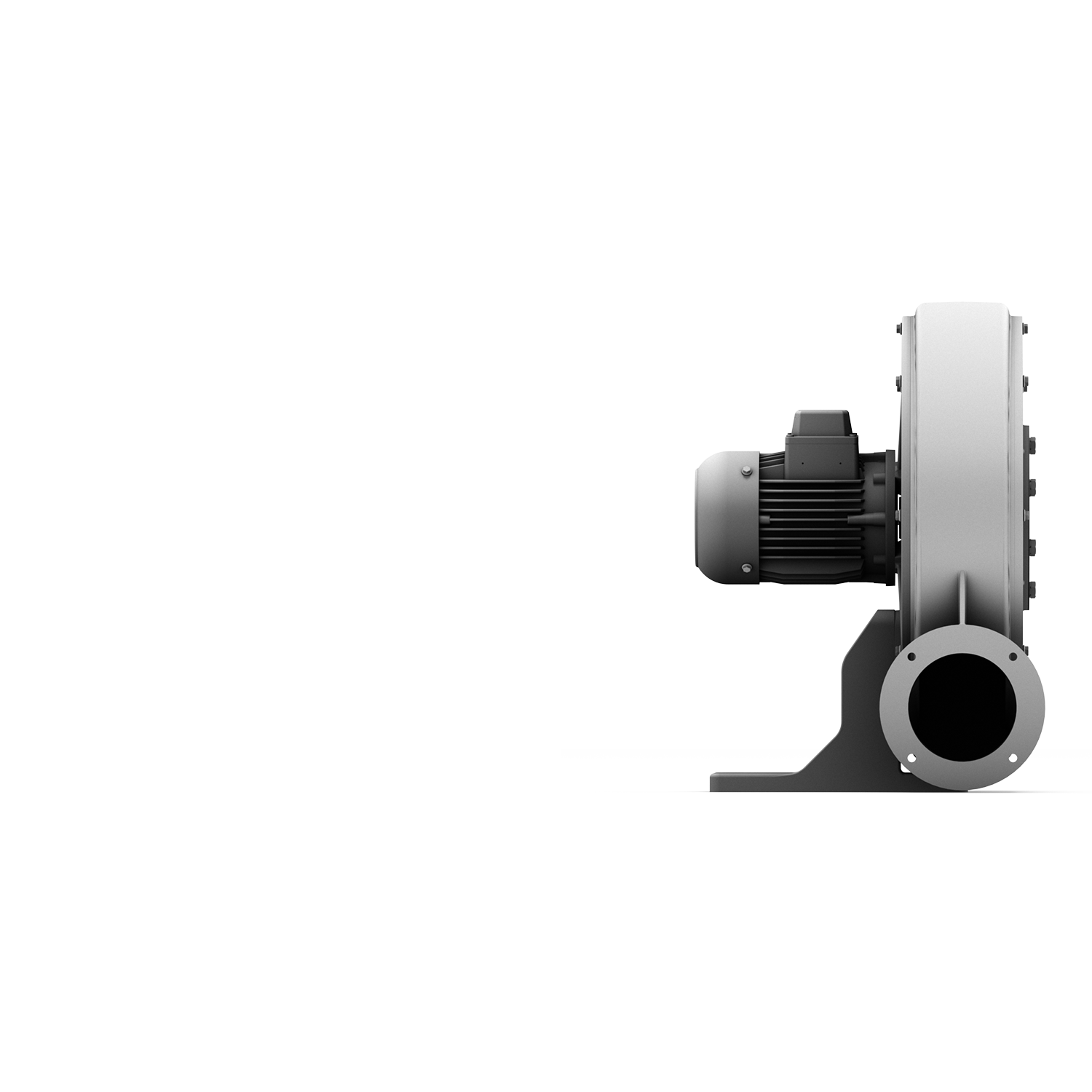

Radial Medium Pressure Blowers
RD 62
Up to 142 m³/min and 10,600 Pa. Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 62
IE3
27,5
3000
230/400
50
4,20/2,40
1,10
2910
33
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 62
IE3
26,5
3300
230/400
60
4,55/2,65
1,32
3490
35
RD 62
NEMA Premium
26,5
3300
277/480
60
3,80/2,20
1,32
3490
35
ATEX
ATEX models are available for this series on request. If you are interested, please fill in and send us our ATEX self-assessment form.

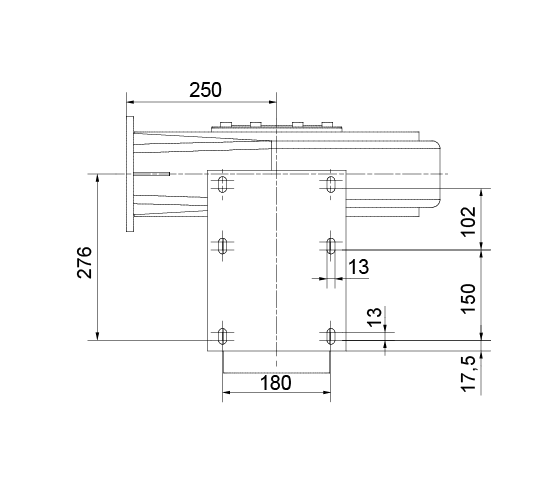

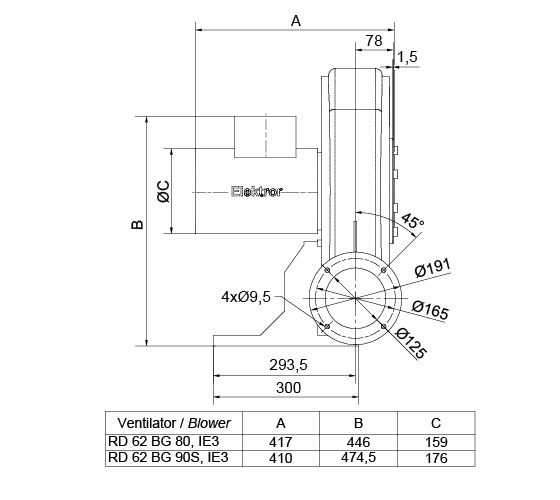

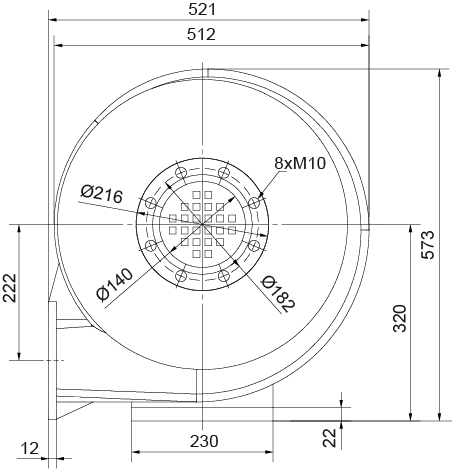

Technical drawings
