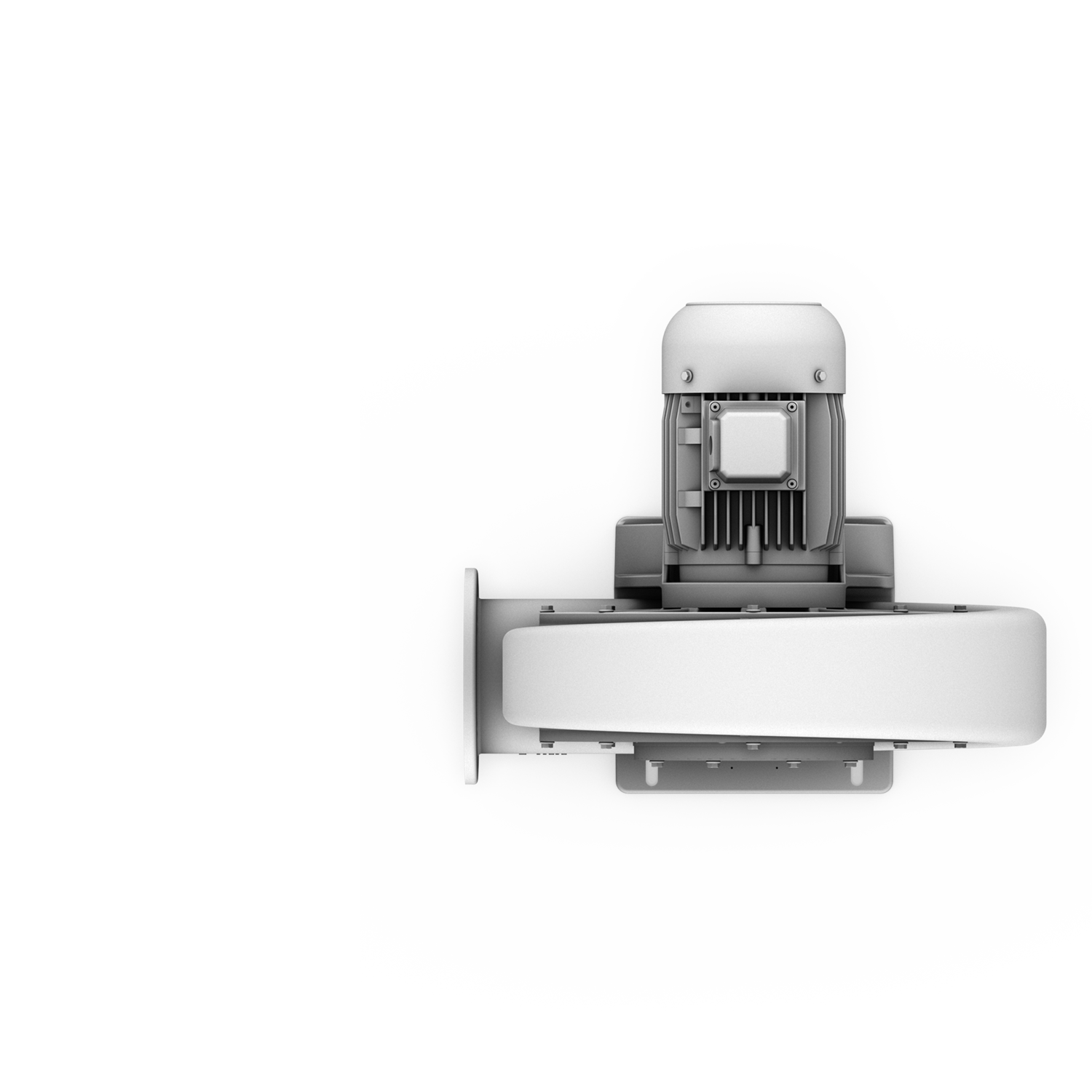

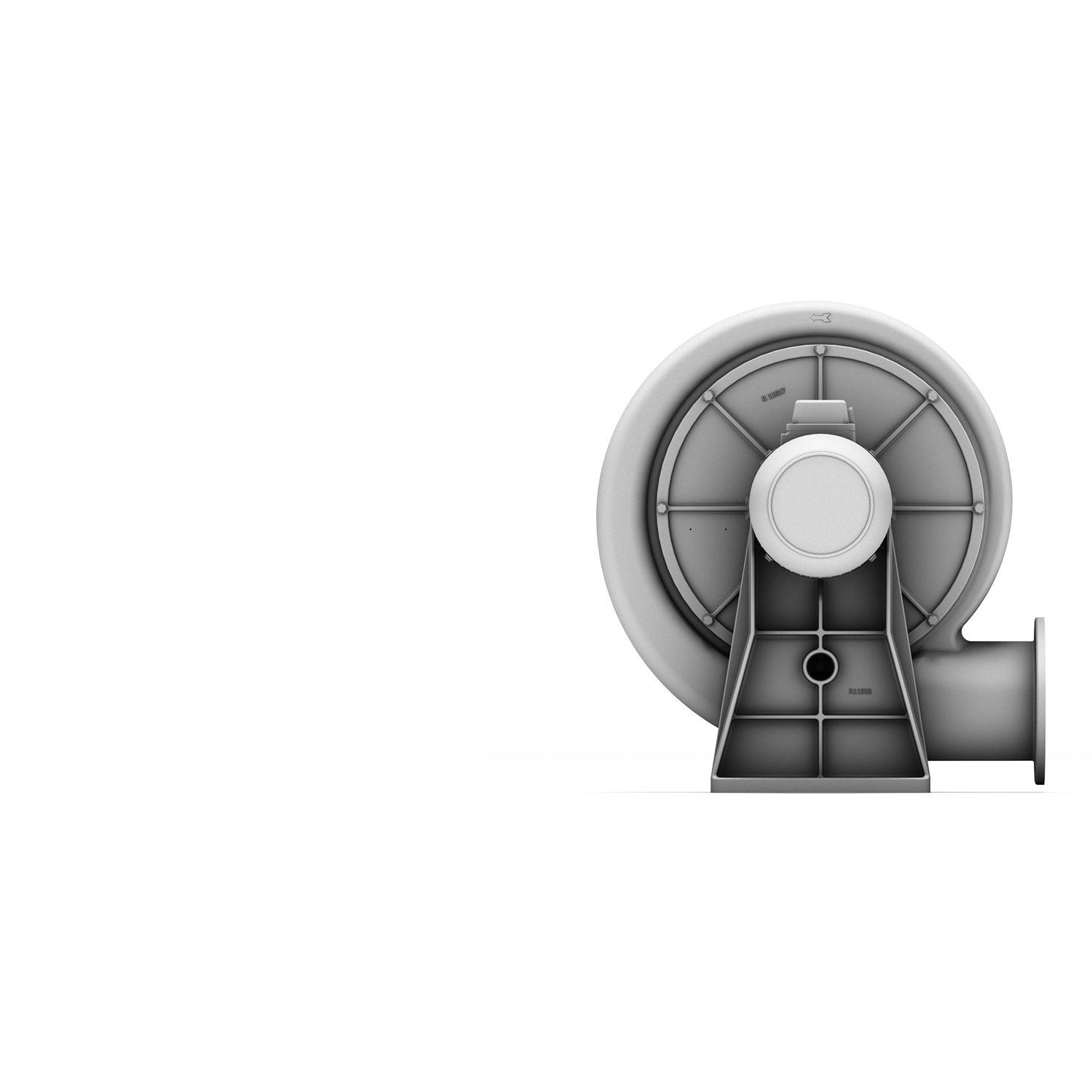

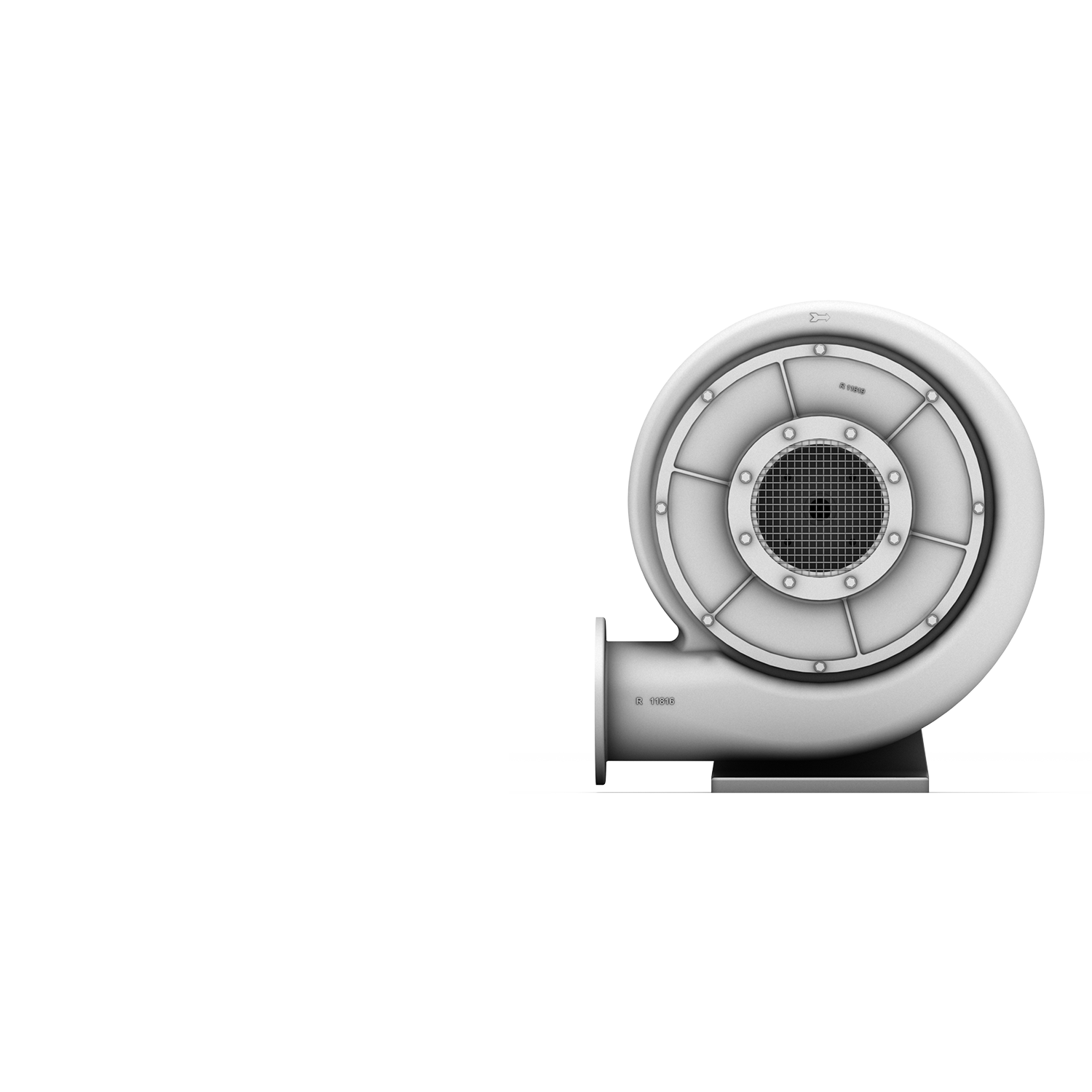

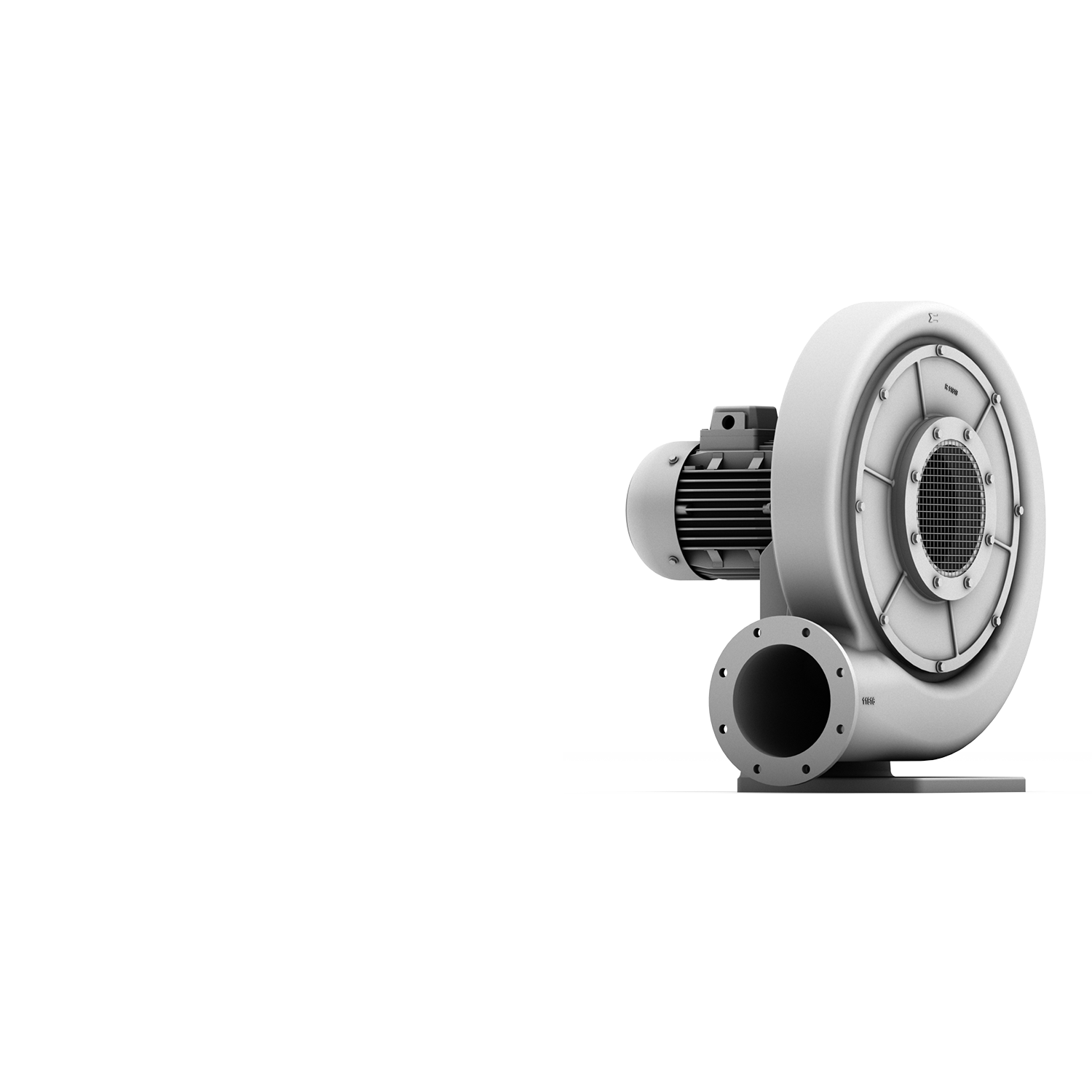

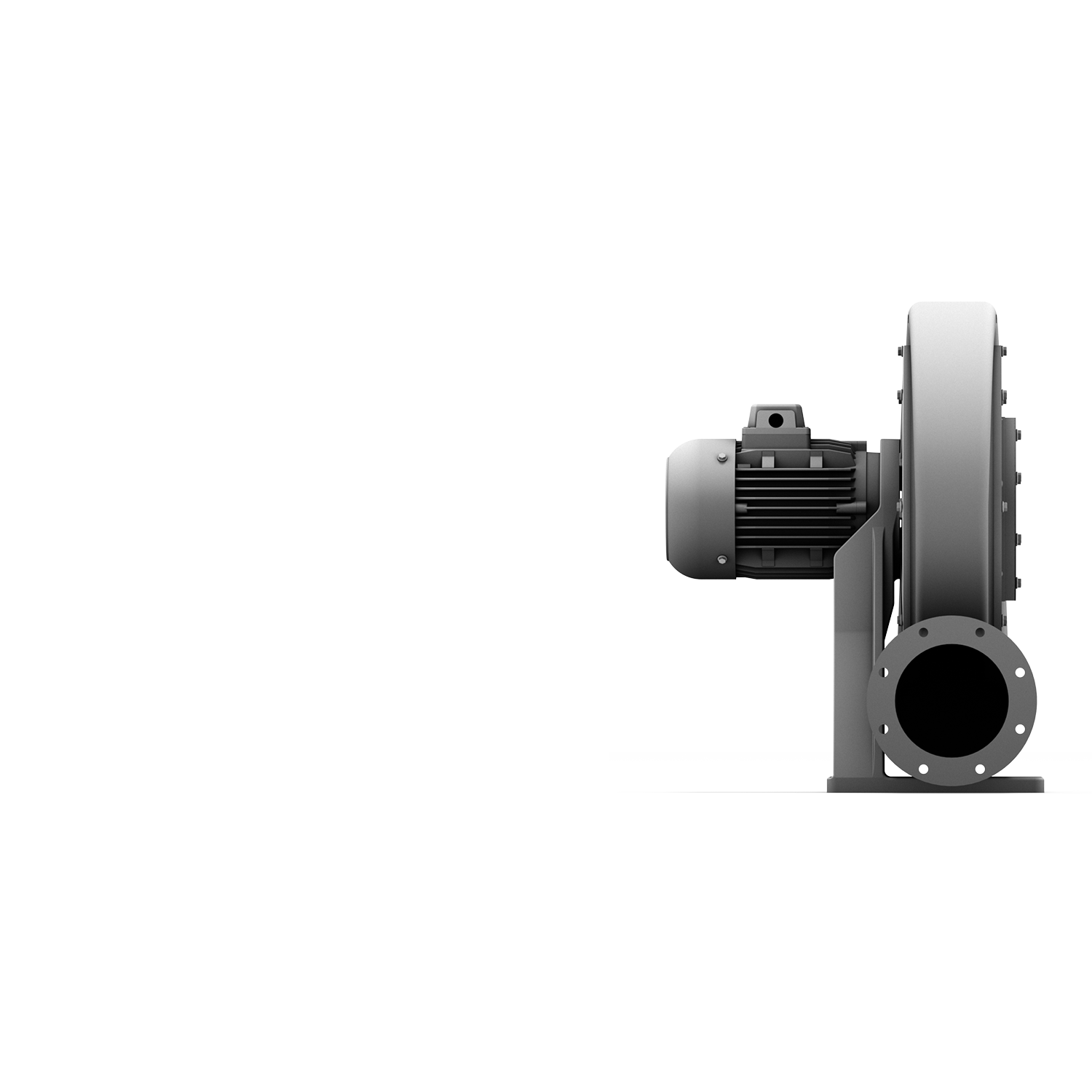

Radial Medium Pressure Blowers
RD 65
Up to 142 m³/min and 10,600 Pa. Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 65
IE3
40,0
2300
230/400
50
7,60/4,40
2,20
2870
39
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 65
IE3
35,0
3250
230/400
60
9,10/5,30
2,64
3480
39
RD 65
NEMA Premium
35,0
3250
277/480
60
7,60/4,40
2,64
3480
39
ATEX
ATEX models are available for this series on request. If you are interested, please fill in and send us our ATEX self-assessment form.
Technical drawings
