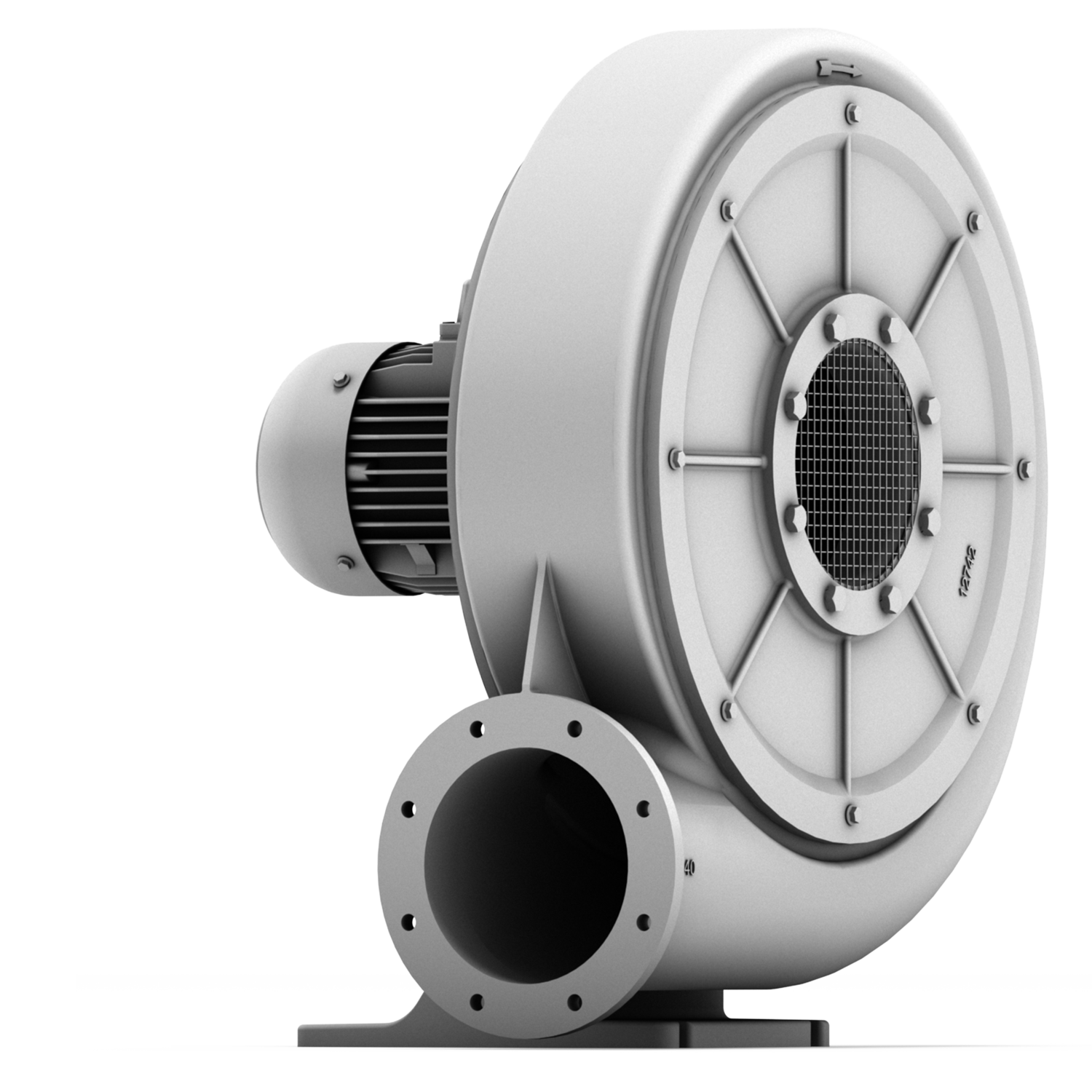

Radial Medium Pressure Blowers
RD 7
Up to 142 m³/min and 10,600 Pa. Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 7
IE3
50,0
3600
230/400
50
7,60/4,40
2,20
2870
45
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 7
IE3
51,0
3800
230/400
60
9,10/5,30
2,64
3480
45
RD 7
NEMA Premium
51,0
3800
277/480
60
7,60/4,40
2,64
3480
45
ATEX
ATEX models are available for this series on request. If you are interested, please fill in and send us our ATEX self-assessment form.
