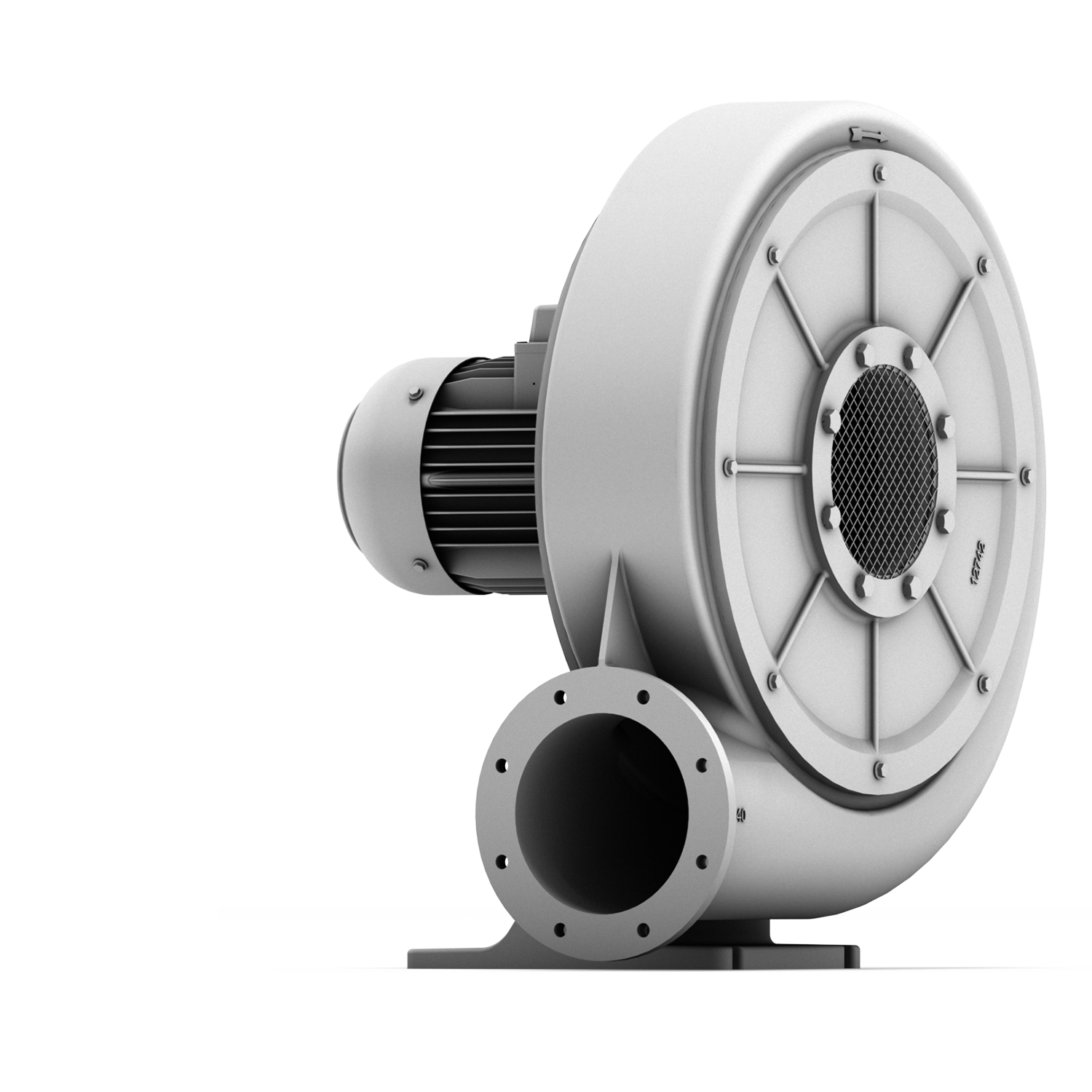

Radial Medium Pressure Blowers
RD 74
Up to 142 m³/min and 10,600 Pa. Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 74
IE3
60,5
3500
400
50
7,80
4,00
2935
62
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
RD 74
IE3
65,0
3600
400
60
9,10
4,80
3525
62
RD 74
NEMA Premium
65,0
3600
480
60
7,60
4,80
3525
62
ATEX
ATEX models are available for this series on request. If you are interested, please fill in and send us our ATEX self-assessment form.
