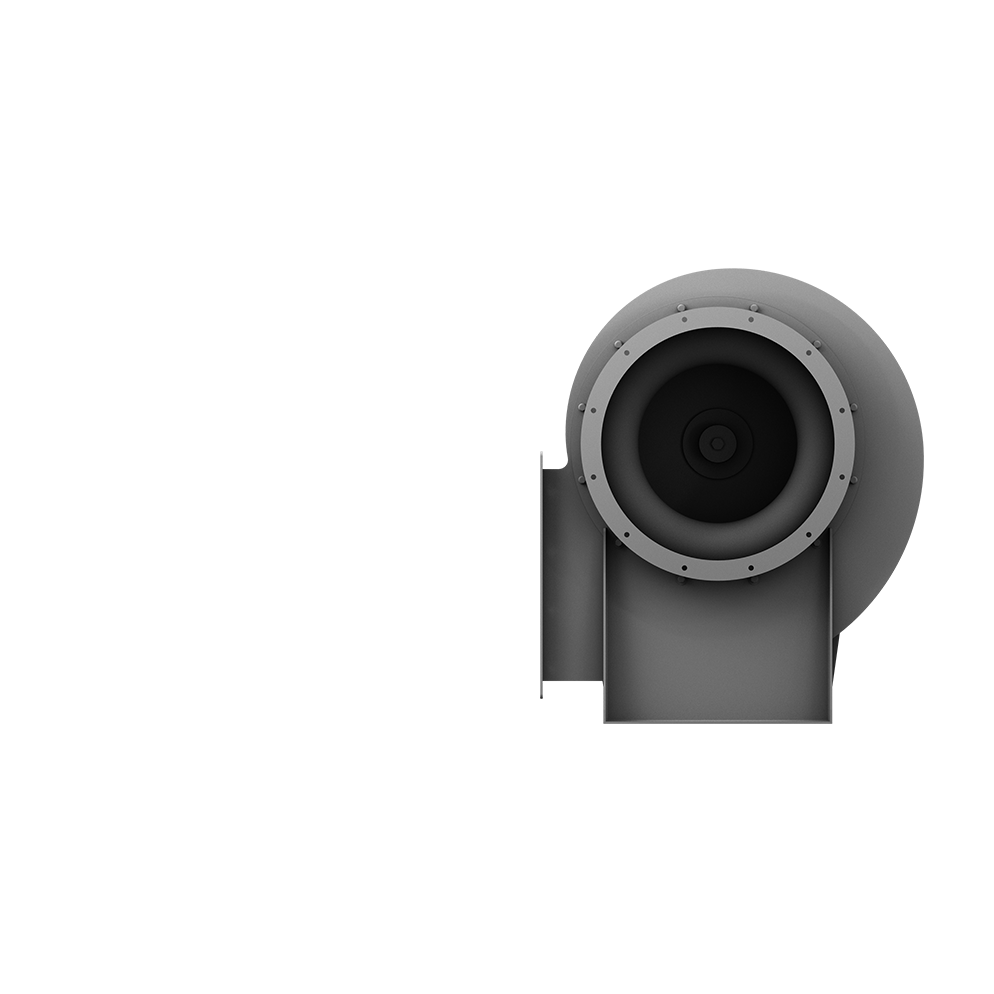

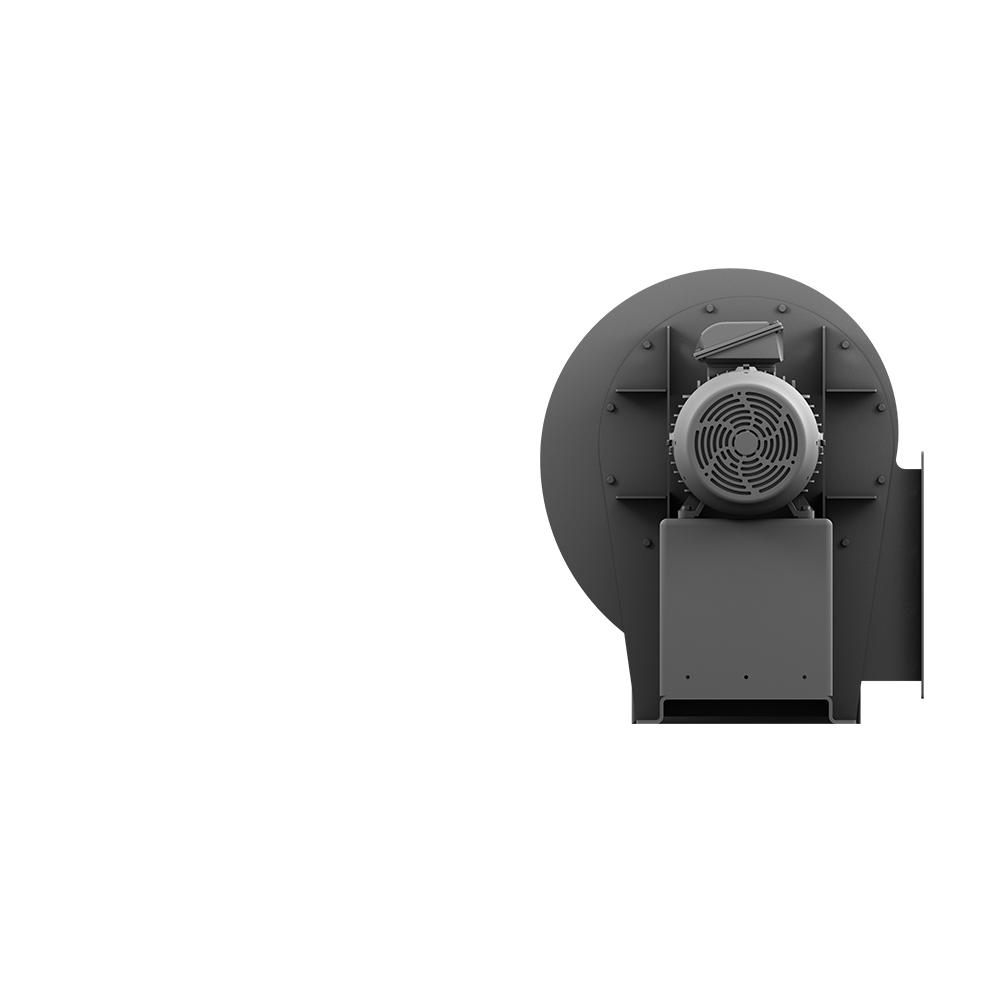

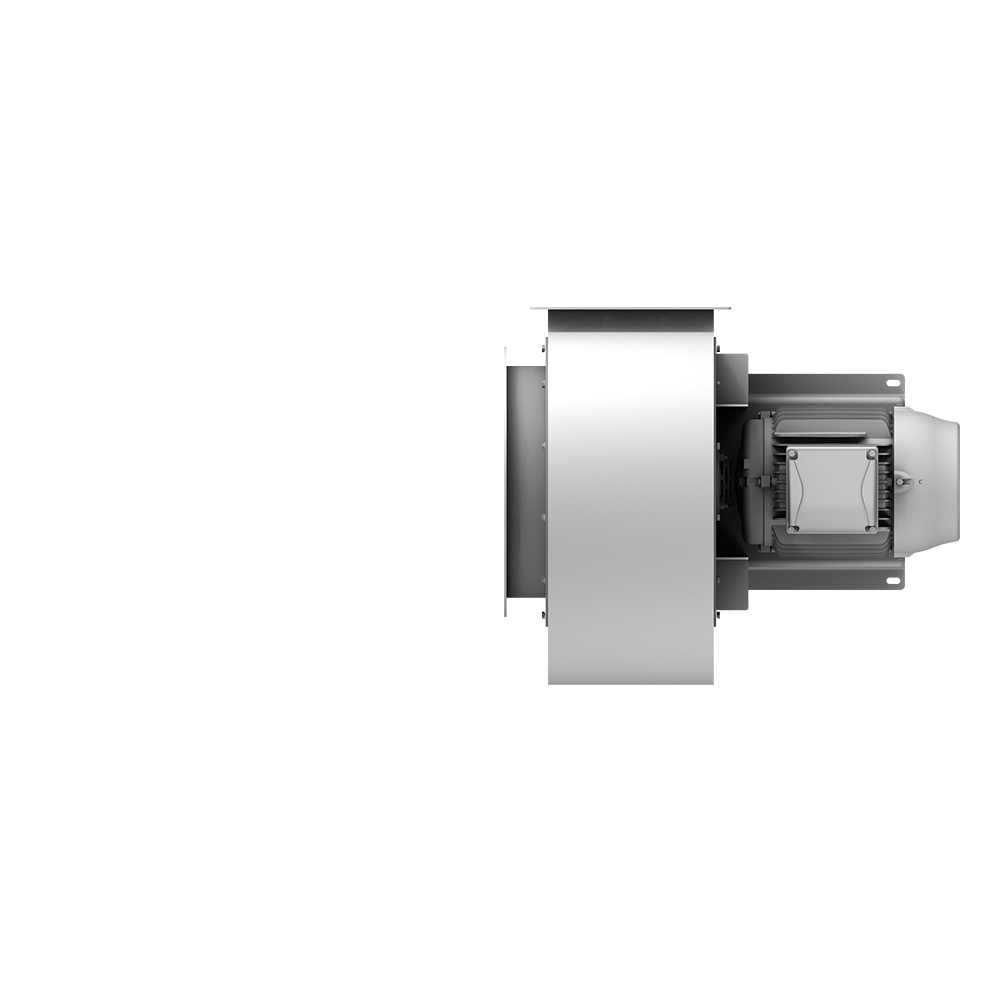

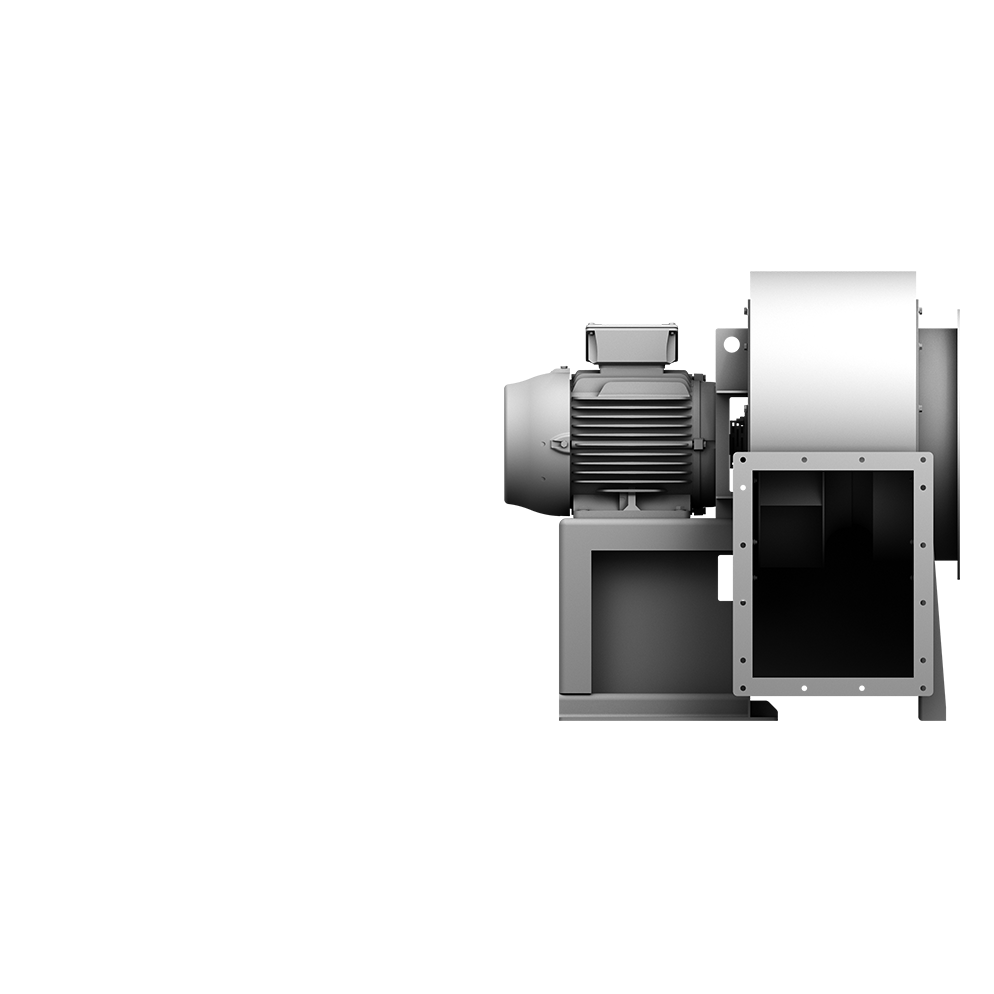

High Efficiency Blowers
S-HE 530/135
Up to 260 m³/min and 4,800 Pa. Highly efficient impellers bent backwards and made of steel. Very high level of effectiveness, low energy consumption. Housing made of steel. Variable connection possibilities.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
S-HE 530/135-50/11
IE3
222,7
4280
400/690
50
20,4/11,8
11
2955
277
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
-
m³/min
Pa
V
Hz
A
kW
min-1
kg
S-HE 530/135-60/11
IE3
206,9
4670
460
60
17,9
11
3560
271
S-HE 530/135-60/11
NEMA Premium
206,9
4670
460
60
17,9
11
3560
271
Technical drawings
