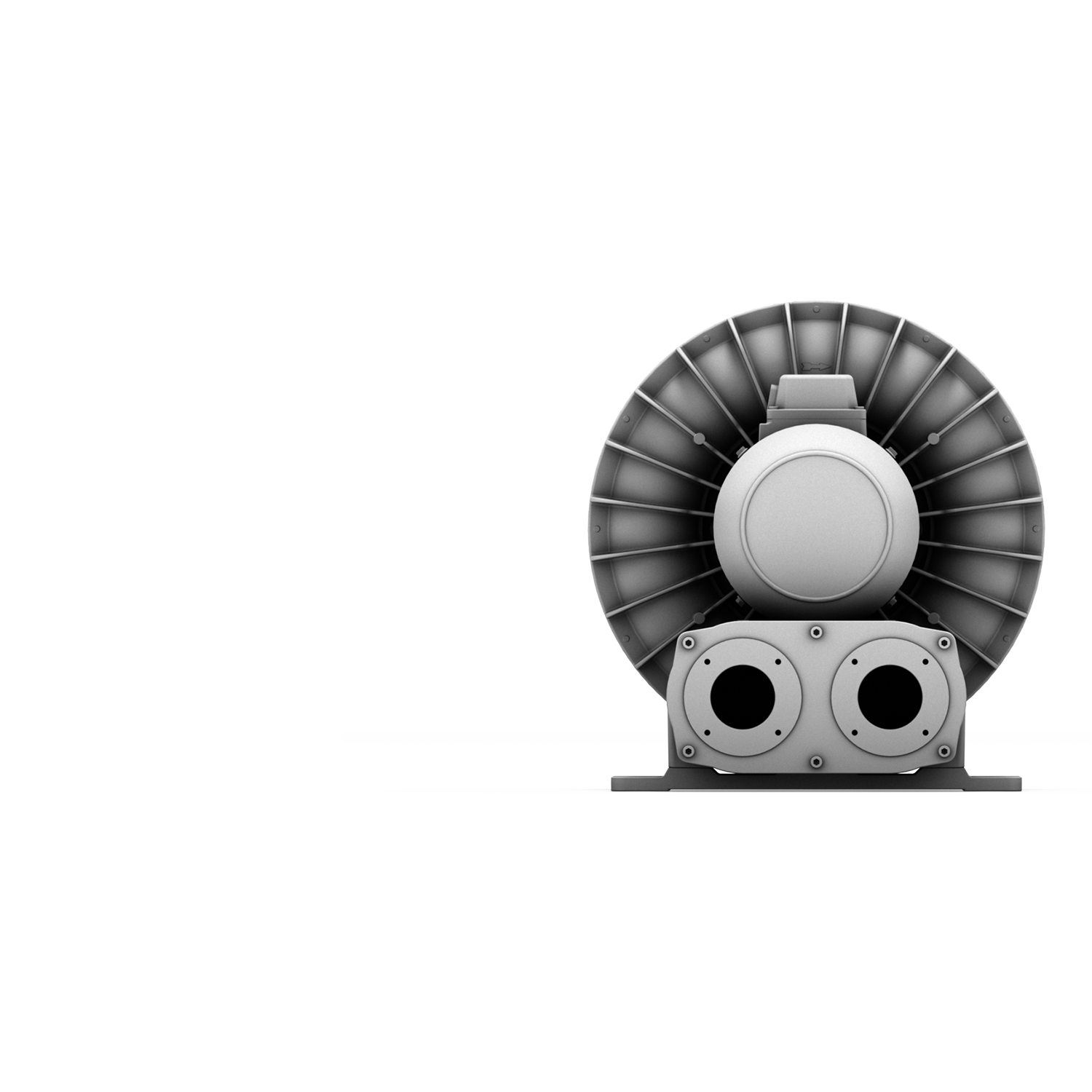

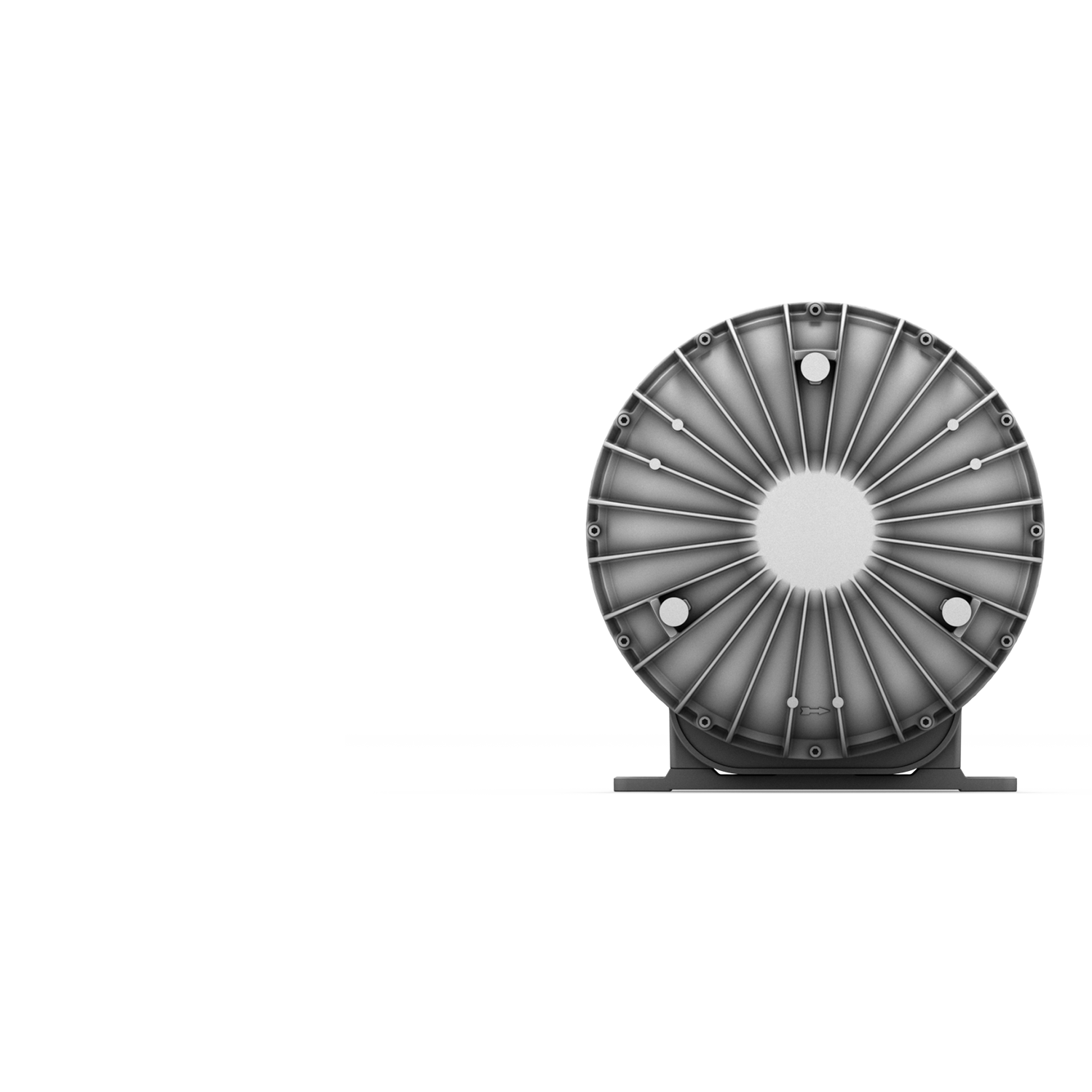

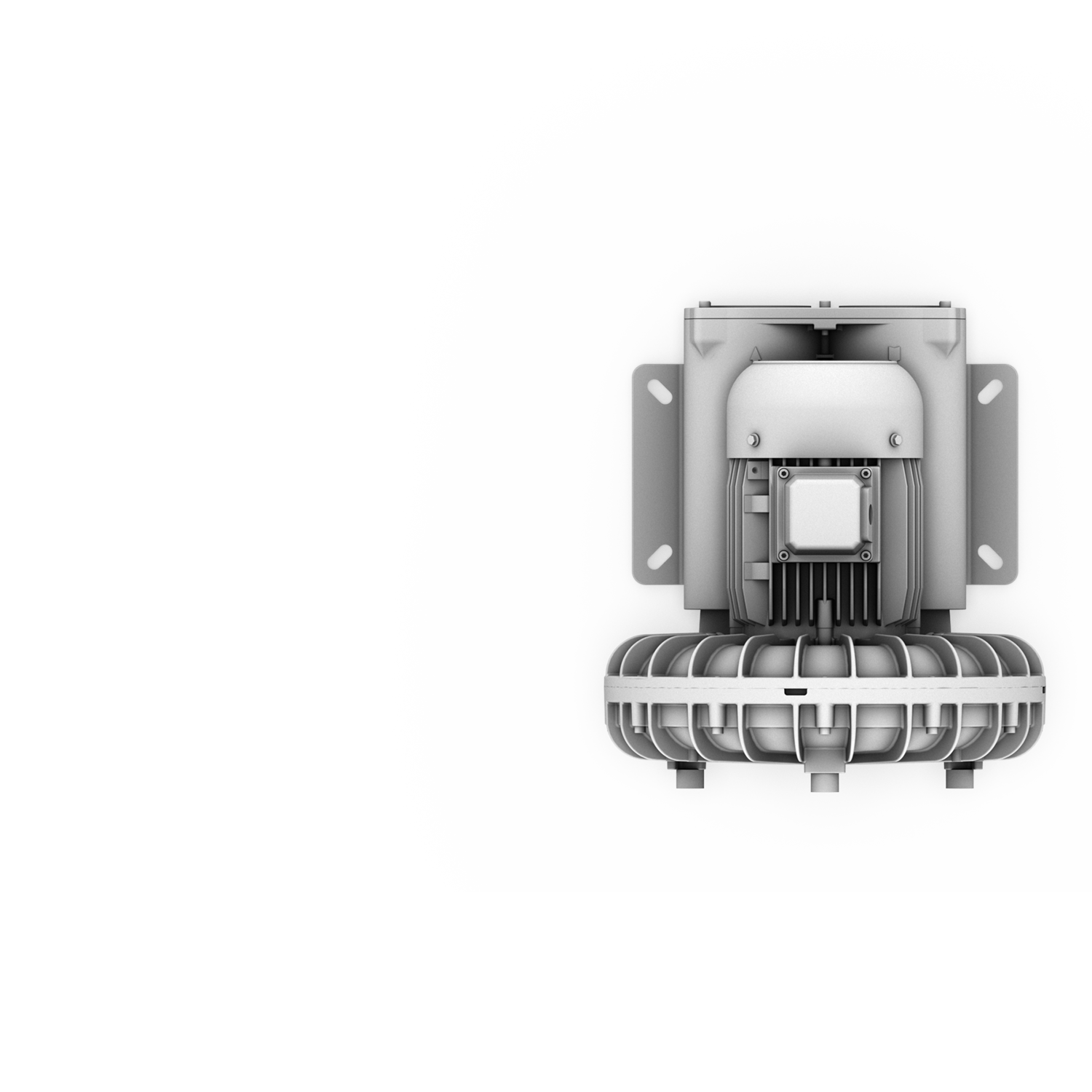

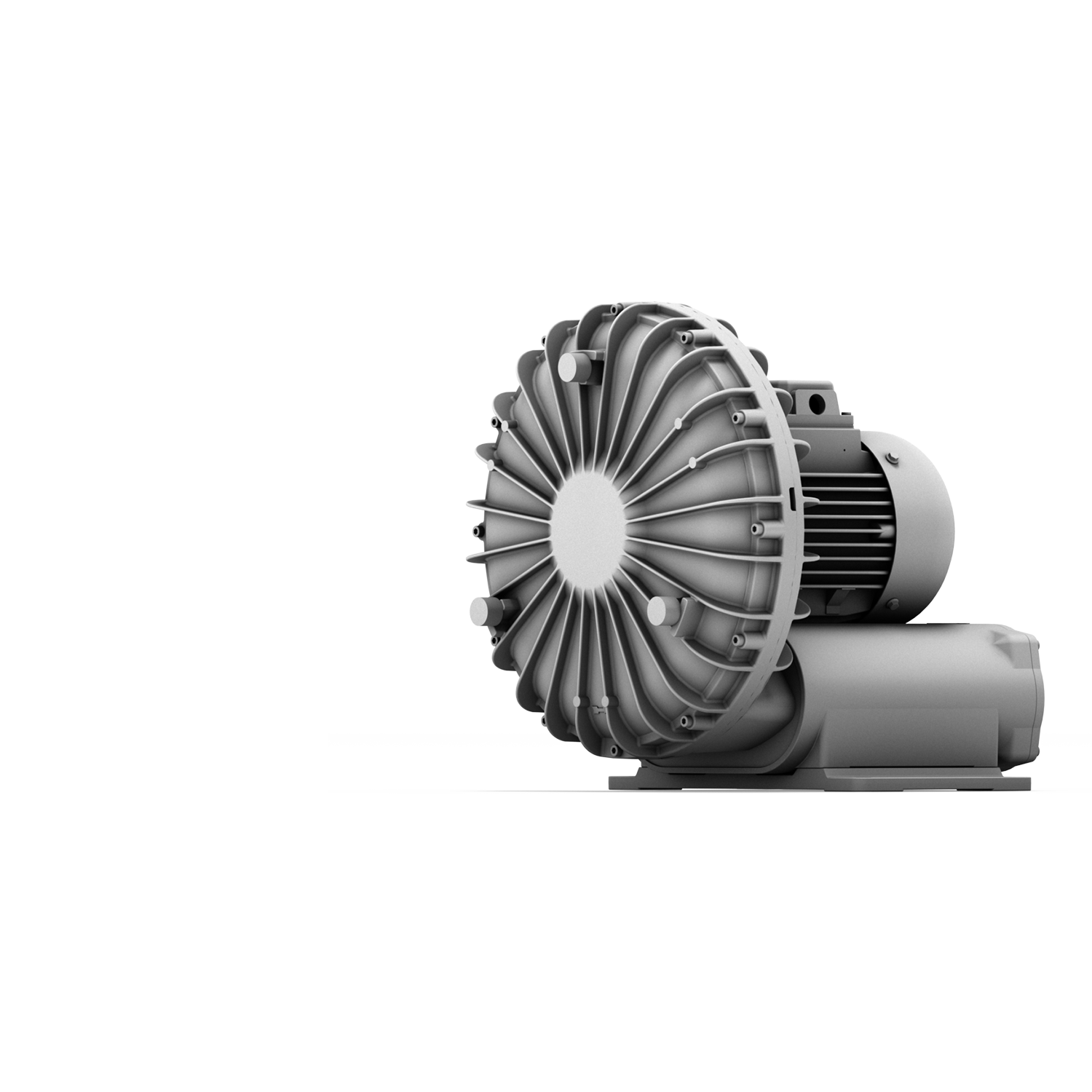

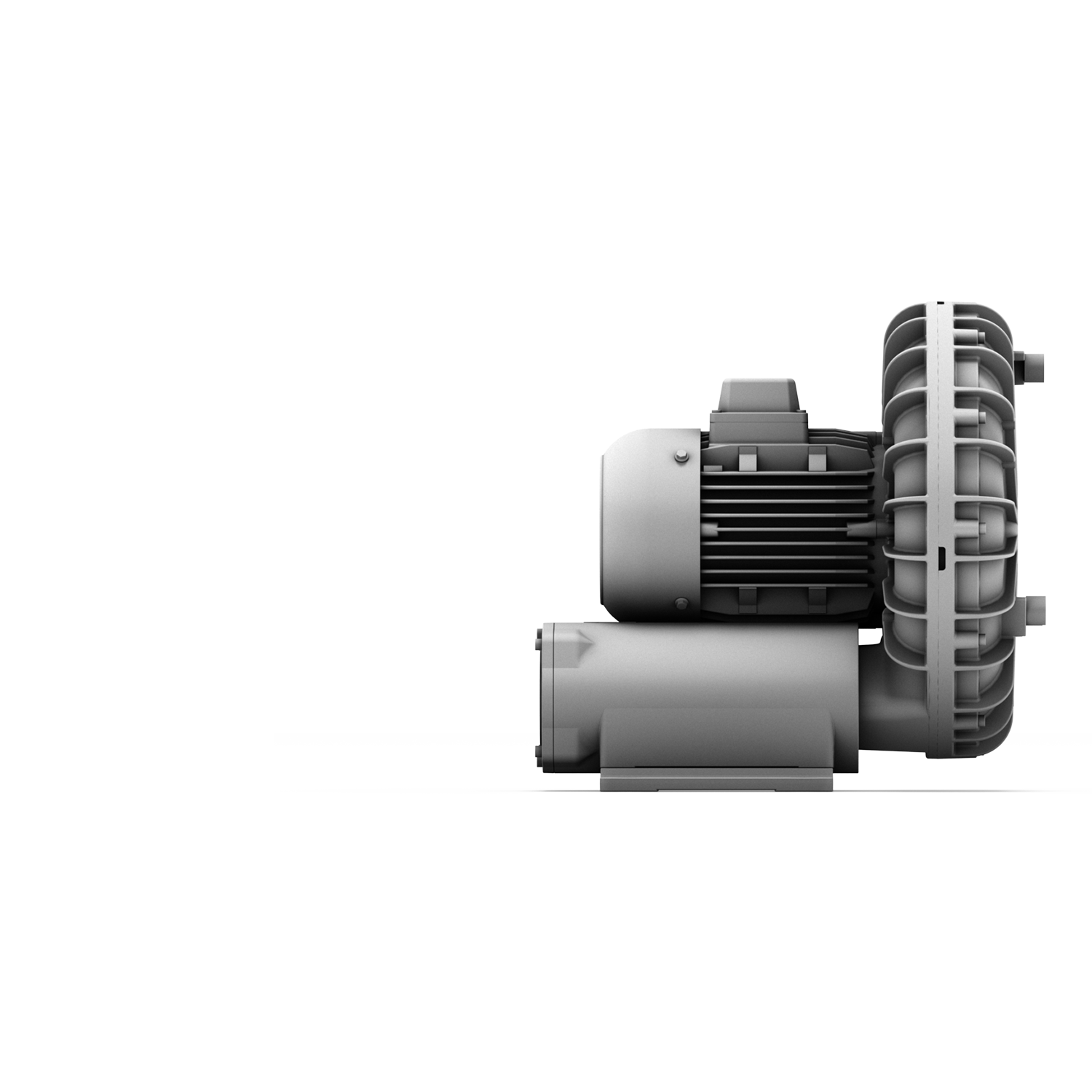

Single Stage Side Channel Blowers
SD 6
Up to 19 m³/min and 410 mbar. Housing and open/closed impellers made of cast aluminium. Direct motor, integrated silencer, compact construction, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Sound pressure level (connection on suction side)
Sound pressure level (connection on pressure side)
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
min-1
kg
dB (A)
dB (A)
SD 6
-
4,6
30000
4,6
23000
207-253/360-440
50
8,00-7,80/4,60
2,10
2850
36
77-89
72-82
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Sound pressure level (connection on suction side)
Sound pressure level (connection on pressure side)
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
min-1
kg
dB (A)
dB (A)
SD 6
-
5,6
30000
5,6
26000
255-300/440-520
60
9,20-9,00/5,30-5,20
3,10
3415
36
79-94
76-82
SD 6
IE3
5,6
23000
5,6
26000
277/480
60
7,60-4,40
2,64
3480
36
79-94
76-82

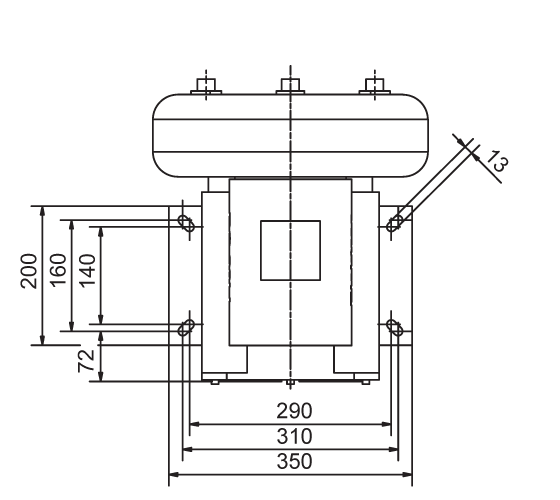

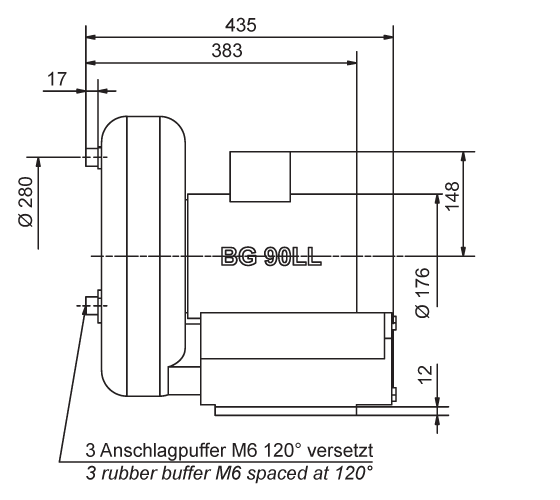

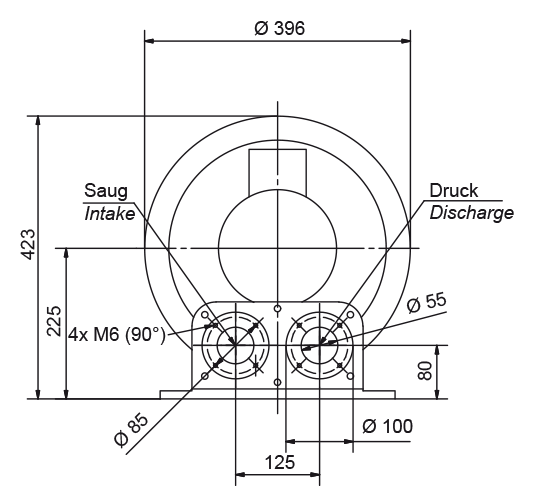

Technical drawings
