Single Stage Side Channel Blowers
SD 72
Up to 19 m³/min and 410 mbar. Housing and open/closed impellers made of cast aluminium. Direct motor, integrated silencer, compact construction, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Sound pressure level (connection on suction side)
Sound pressure level (connection on pressure side)
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
min-1
kg
dB (A)
dB (A)
SD 72
-
7,0
35000
7,0
28000
360-440
50
8,50-8,70
4,0
2925
64
82-91
76-85
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Sound pressure level (connection on suction side)
Sound pressure level (connection on pressure side)
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
min-1
kg
dB (A)
dB (A)
SD 72
-
8,5
37000
8,5
30000
440-520
60
10,3-10,2
6,1
3500
64
85-92
81-85
SD 72
IE3
8,5
26000
8,5
30000
480
60
7,60
4,8
3525
64
85-92
81-85

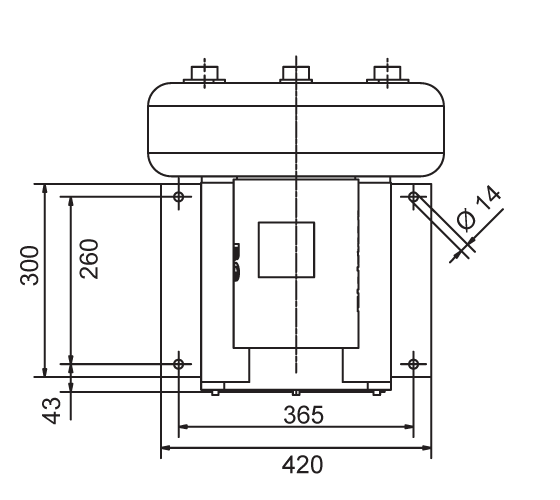

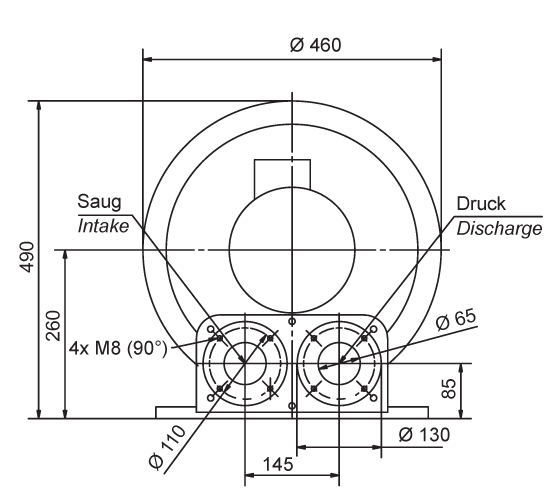

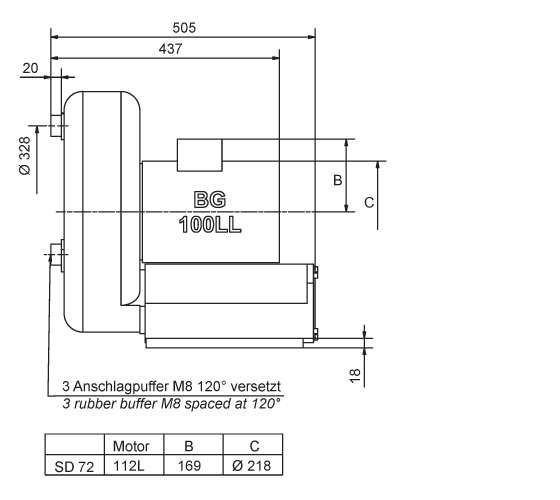

Technical drawings
