Single Stage Side Channel Blowers
SD 80
Up to 19 m³/min and 410 mbar. Housing and open/closed impellers made of cast aluminium. Direct motor, integrated silencer, compact construction, mostly corrosion-resistant.
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Sound pressure level (connection on suction side)
Sound pressure level (connection on pressure side)
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
min-1
kg
dB (A)
dB (A)
SD 80
-
8,9
30000
8,9
28000
360-440
50
11,0-9,6
5,5
2890
76
77-89
76-85
Characteristic curves
Performance data
Efficiency class
Volume flow
Total pressure difference
Volume flow (negative pressure)
Total pressure difference (negative pressure)
Voltage
Frequency
Current consumption
Performance
Fan speed
Weight
Sound pressure level (connection on suction side)
Sound pressure level (connection on pressure side)
-
m³/min
Pa
m³/min
Pa
V
Hz
A
kW
min-1
kg
dB (A)
dB (A)
SD 80
-
10,5
30000
10,5
30000
440-520
60
11,0-9,6
6,8
3525
76
81-90
81-85
SD 80
IE3
10,5
17500
10,5
17500
480
60
7,6
4,8
3525
76
81-90
81-85

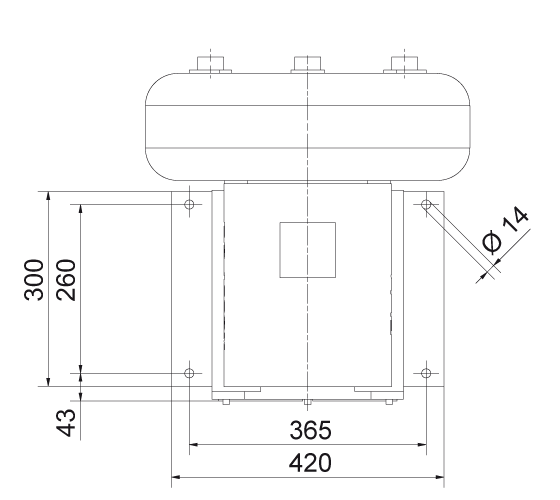

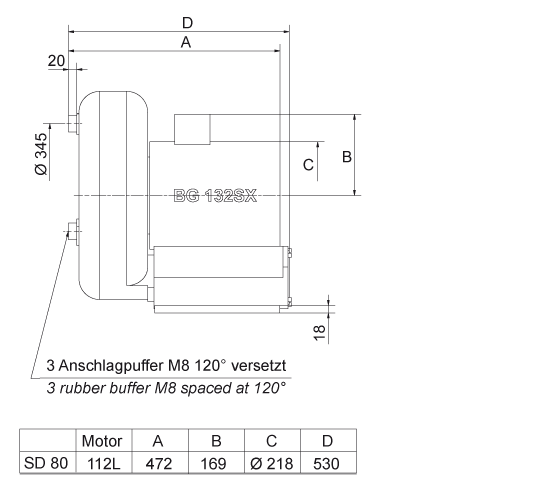

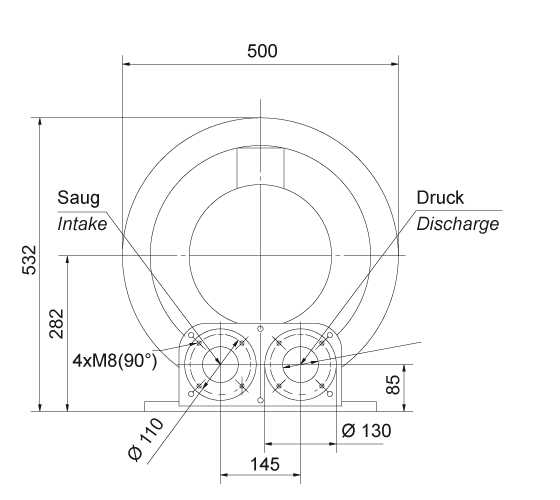

Technical drawings
